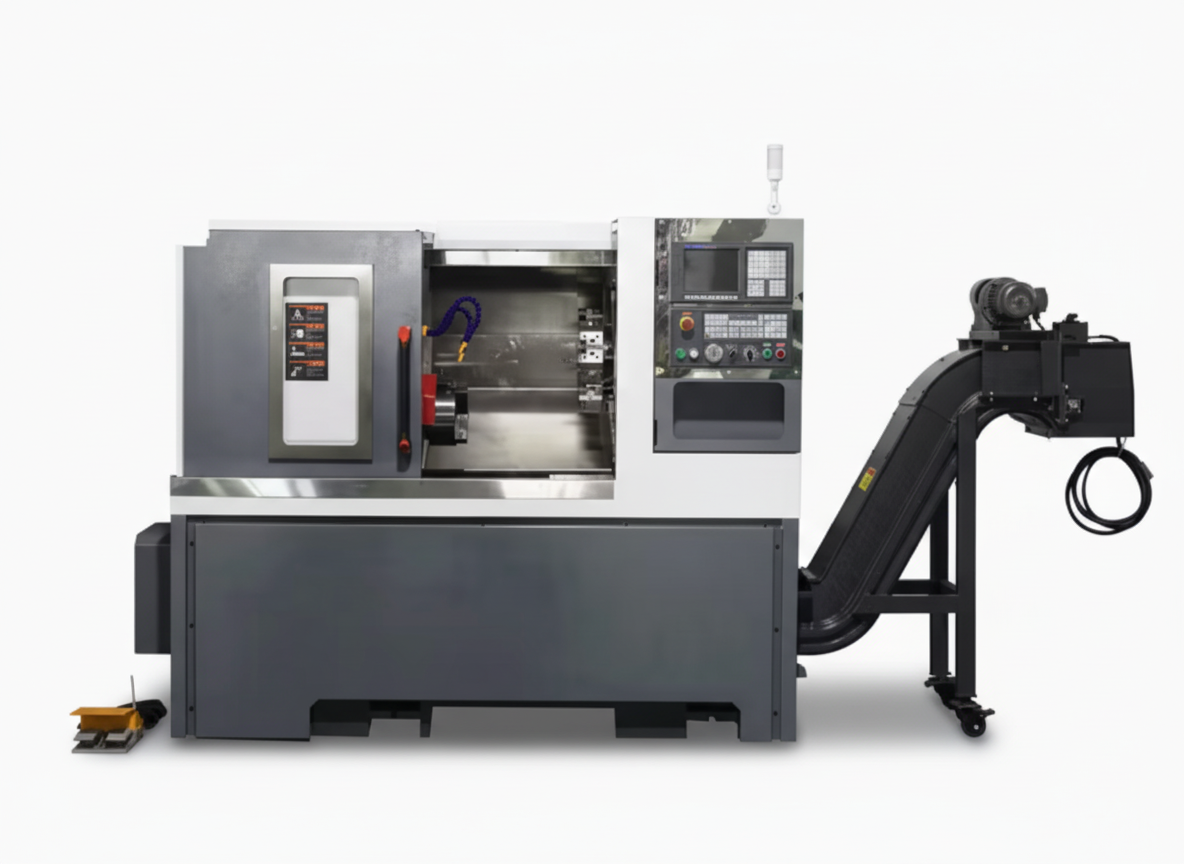

GD46-400 CNC Lathe Machine - Long Bar Machining
Model: GD46-400 | SKU: GD46-400-CNC
High precision horizontal CNC lathe machine designed for long bar machining applications. Features inclined guide rails, hydraulic chuck, and automatic lubrication system. Ideal for metal turning operations requiring precision within 0.01mm. Equipped with GSK980TC3 control system (SYNTEC 6AT optional), 7.5kW electric spindle, and 8-station turret for versatile machining capabilities.
Engineered for Reliability
High precision machining within 0.01mm tolerance
Inclined bed design for superior chip evacuation
8-station turret for versatile tool configurations
Hydraulic chuck and tailstock for secure workholding
Taiwan SHAC linear guide rails for smooth motion
Taiwan SHAC ball screws for precise positioning
Automatic lubrication system (2L capacity)
GSK servo motors with 23-bit encoders
7.5kW/11kW electric spindle up to 4000 RPM
Long bar machining capability up to 46mm diameter
Integrated coolant system (60L tank)
CE certified with ISO 9001 quality standards
Key Features
High precision machining within 0.01mm tolerance
8-station turret for versatile tool configurations
Taiwan RENY hydraulic chuck for secure workholding
GSK980TC3 / SYNTEC 6AT control system options
Industrial Applications
Automotive Parts
Precision turning of shafts, bushings, and cylindrical components for automotive applications
Aerospace Components
High-precision machining of aerospace-grade metal parts with tight tolerances
Medical Devices
Manufacturing of precision medical instrument components and implant parts
General Metal Fabrication
Versatile turning operations for various metal fabrication requirements
Technical Specifications
| Type | Horizontal CNC Lathe |
| Chuck | 8-inch Hydraulic (RENY Taiwan) |
| Precision | ≤0.01mm |
| Ball Screw | Taiwan SHAC |
| Floor Space | 2200 x 1450mm |
| Coolant Tank | 60L |
| Packing Size | 2400 x 1650 x 1850mm |
| Power Supply | 11 kVA |
| Spindle Nose | A2-5/A2-6 |
| X-Axis Motor | 1.5kW |
| Z-Axis Motor | 1.5kW |
| Spindle Motor | 7.5kW / 11kW |
| Spindle Speed | 4000 RPM |
| Tool Stations | 8 |
| X-Axis Stroke | 200mm |
| Z-Axis Stroke | 530mm |
| Control System | GSK980TC3 / SYNTEC 6AT |
| Hydraulic Tank | 50L |
| Machine Height | 1750mm |
| Machine Weight | 2500kg |
| Guide Rail Type | Linear Guide Rail (Roller) |
| Rapid Feed Rate | X: 25m/min, Z: 25m/min |
| Shipping Weight | 2700kg |
| Tailstock Taper | MT.5 |
| Lubrication Tank | 2L |
| Tailstock Stroke | 300mm |
| Tool Shank Height | 25mm |
| Boring Bar Diameter | 32mm |
| Hydraulic Pump Motor | 1.5kW |
| Max Machining Length | 400mm |
| Spindle Center Height | 980mm |
| Spindle Hole Diameter | 56mm |
| Bar Machining Diameter | 46mm |
| Max Machining Diameter | 280mm |
| Max Turning Diameter (Bed) | 450mm |
| Standard Machining Diameter | 200mm |
